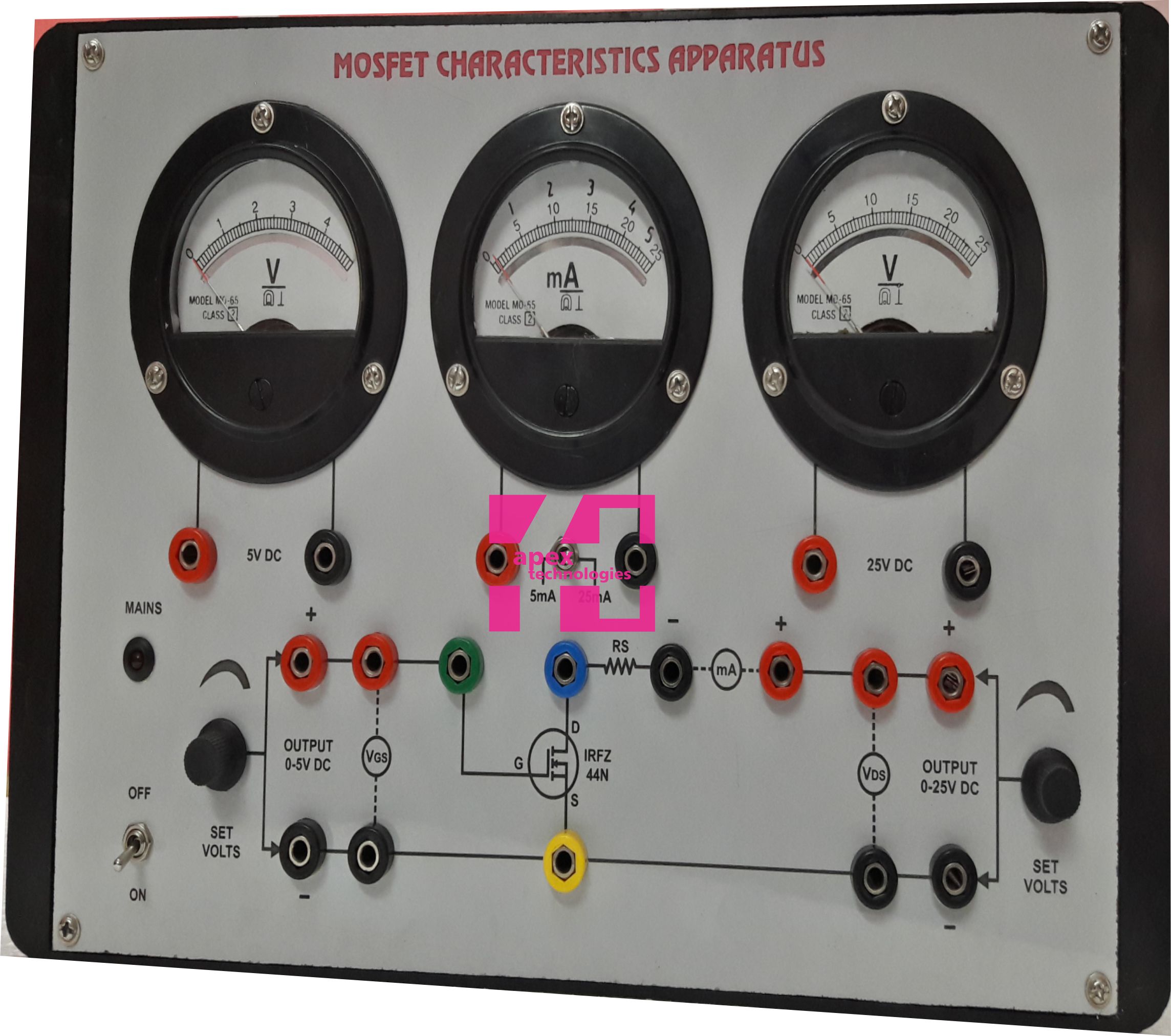

Mosfet Characteristics Apparatus

Model Number AT - 308

Two variable DC supplies 0 to 15 V & 0 to 24 V @ 500 mA,

On panel circuit diagram with MOSFET

Two dual range digital panel meters.

Required numbers of patch cords and operating manual.

PRODUCT INFORMATION

Technical Specifications

*Inbuilt Variable DC Regulated Power Supply of 0-5V & 0-25 DC.

*0-5V Power Supply for Mosfet’s Gate & 0-25V DC for Drain Voltage.

*Inbuilt One N-channel enhancement Type MOSFET No. IRF 840.

*Two numbers of Voltmeter 0-5V for Gate Voltages & 0-25V for Drain Voltage.

*One Number of Dual Range Current Meter Range of 5mA/ 25mA for measure the Current.

* Front Panel built with high class Bakelite sheet with well printed circuits diagram and symbol.

*Connections are brought out through 4mm Colored Sockets. The Trainer is housed in ABS Plastic Cabinet.

*Size of the Trainer set (320mm x 200mm x 80mm).

*Instruction manual.

*Patchcords 4mm.
