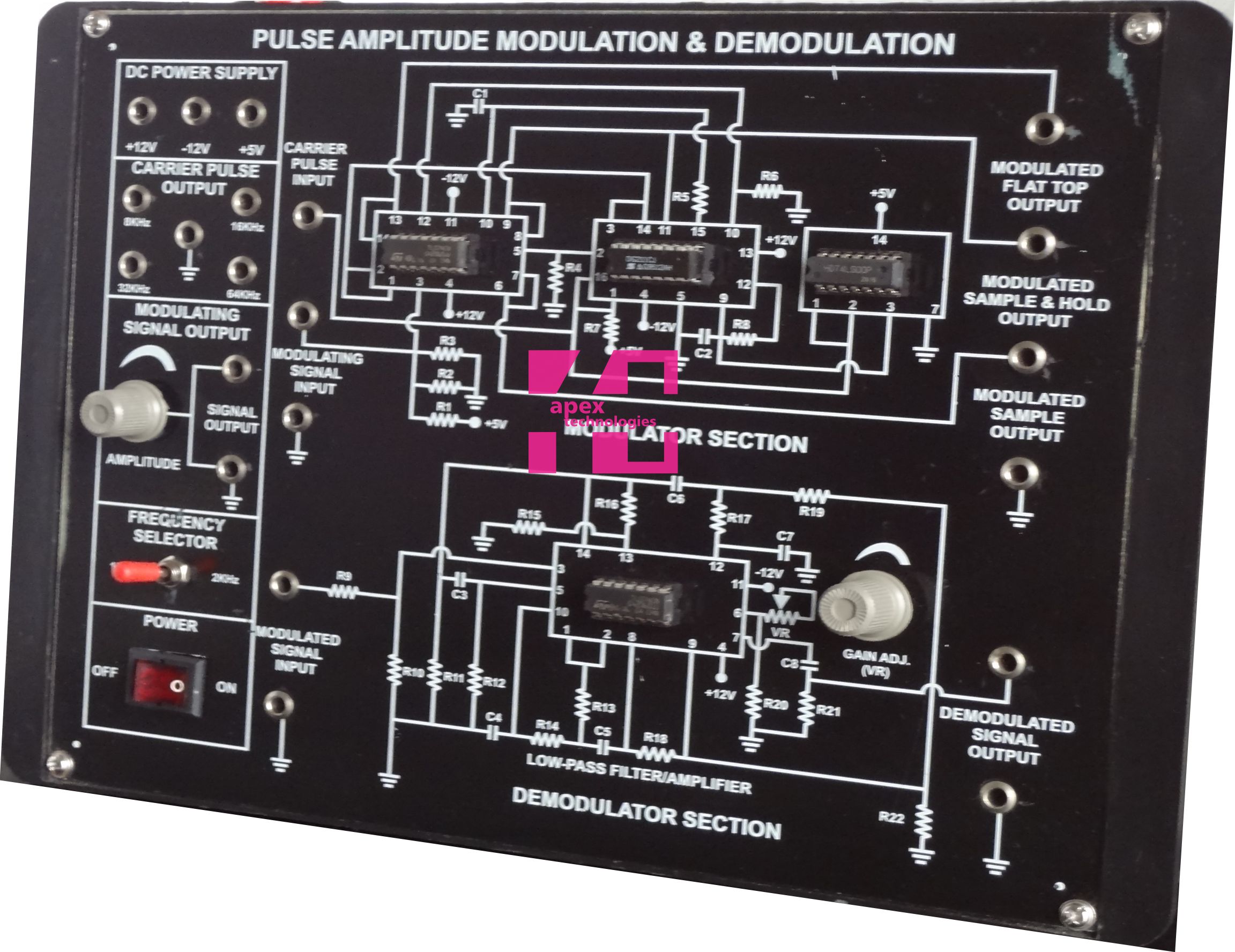

* In built IC based DC Regulated Power Supply ±12V, +5/ 250mA

* On board Sine Wave Audio Frequency Signal Generator, Frequency : 1KHz & 2KHz, Amplitude : 0-10Vpp & 0-4VppApprox.

* On board Sampling Pulse Generator, Frequency : 8KHz, 16KHz, 32KHz 64KHz, Amplitude : 5Vpp Approx.

* Modulation using IC 7555 Multiplexer

* Demodulation of PAM using 4th order/ Low Pass Filter & AC Amplifier using AC amplifier using TL074    with adjustable Gain Control

* Glass Epoxy PCB used as front panel & mounted on light weight shock proof plastic cabinet

Size (mm) : 280 x 205 x 85

Power Requirement : 220V AC ±10%, 50Hz

Standard Accessories : Patch Cords & Instruction Manual

Optional Accessories : CRO 20MHz
